  1. Useful customizations (any CRM)

Call data (call_full) in customizations

For Bitrix24, the call_full object is available starting with Itgrix_bx 3.10.0.

For Kommo, the call_full object will appear in the Itgrix_amo 2.13.0 version.

Main object (call_full)

{
  "call_full": {
    "active_conversation_id": "<uniqueid of the current call (or an empty line)>",
    "channel": {<Call channel data from Asterisk (main channel - linkedid)>},
    "conversations": {
      "1111111111.11111": {
        "channel": {<Conversation channel data from Asterisk>},
        "is_parked": <Whether the conversation is on hold (true/false)>,
        "user": {<User data found by phone number (or null)>}
      },
      ...
    },
    "deal": {<Transaction data (or null)>},
    "entity": {<Entity data (or null)>},
    "is_ivr": <Is a missed call on a IVR (true/false)>,
    "record": "<Link to call recording (or empty string)>",
    "registration": {<Call registration data (or null) - only for Bitrix24>},
    "result": <Call result (SIP-status, int)>
  }
}

Channel data (channel)

"channel": {
  "answer_time": "<Answer time (or 0001-01-01 00:00:00)>",
  "end_time": "<End time (or 0001-01-01 00:00:00)>",
  "extra": {<Extra fields from the CEL table>},
  "from": {<Details of the number from which the call was made>},
  "id": "<channel uniqueid>",
  "is_primary": <Whether the channel is “main”, i.e. uniqueid = linkedid (true/false)>,
  "name": "<Channel name from the CEL table>",
  "start_time": "<Start time (or 0001-01-01 00:00:00)>",
  "state": "The status (line) is one of:
    ringing - in the process of dialing (the subscriber's phone is ringing, there is no answer yet);
    talking - in the process of talking (already had an answer, not yet hung up);
    ended - finished;
    processed - processed by the connector",
  "to": {<Data of the number called>},
  "trunk": {<Trunk number data>},
  "type": "Type (string) - one of:
    local - local (from internal number to internal number);
    incoming - incoming (from external number to internal number);
    outgoing - outgoing (from internal number to external number);
    unknown - unknown (unable to determine type)",
  "was_answered": <Was the answer (true/false)>
}

Date-time format

The date-time is output in the format YYYYY-MM-DD HH:MM:SS.

If no value is set (no event occurred), the value is displayed 0001-01-01 00:00:00.

The time values correspond to the time zone on the Asterisk server.

Number data (from, to, trunk)

"from/to/trunk": {
  "base": "<Number without prefixes>",
  "custom": "<Customized number>",
  "is_local": <Is the number internal (true/false)>,
  "original": "<The number as it was received from Asterisk>",
  "variants": [
    <Number options corresponding to the list of prefixes from the connector settings,
    i.e. base, as well as “prefix+base” numbers for each prefix
    (list of strings)>
  ]
}

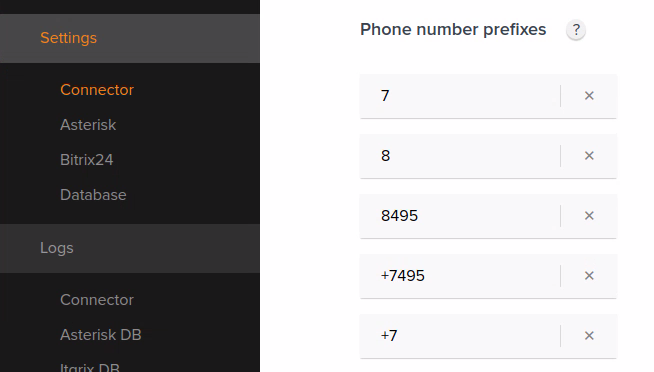

Example of prefix configuration:

Example of a number to:

"to": {
  "base": "9001234567",
  "custom": "89001234567",
  "is_local": false,
  "original": "+79001234567",
  "variants": [
    "9001234567",
    "+74959001234567",
    "84959001234567",
    "+79001234567",
    "79001234567",
    "89001234567"
  ]
}

The connector first tries to use the number in the field custom (i.e., the result of autosubstitution and/or customization); if it is not present, the original number in the field original.

User data (user)

"user": {
  "email": "<Email>",
  "id": "<User ID in CRM>",
  "name": "<User name>",
  "phones": [
    <List of user phone numbers - strings>
  ],
  "position": "<Position>",
  "raw": {<User data as in CRM>}
}

Only non-empty/non-zero fields are present in the raw object.

The Connector considers the following field values in Bitrix24 as user phone numbers:

  • Internal telephone (field UF_PHONE_INNER)

  • Cell phone (field PERSONAL_MOBILE )

  • Work phone (field WORK_PHONE)

  • Phone (field PERSONAL_PHONE )

User phone numbers in the phones object are represented as strings (as in Bitrix24).

Deal data (deal)

Only itgrix_kmo connector for amoCRM works with deals.

In Bitrix24, the itgrix_bx connector does NOT work with deals, so the value of the deal field will always be null.

Entity data (entity)

"entity": {
  "id": "<Entity ID>",
  "is_new": <Whether an entity was created when registering this call - true/false>,
  "name": "<Entity name>",
  "phones": [
    <List of phone numbers of the entity - objects>
  ],
  "raw": {<Entity data as in CRM>},
  "responsible": {<Responsible user data>},
  "responsible_id": "<Responsible user ID>",
  "type": "<Entity type by string>"
}

In the type field for Bitrix24 there are possible values: company,contact,lead.

Only non-empty/non-zero fields are present in the raw object.

Call registration data in CRM (registration)

The registration object is present only for Bitrix24 (for Kommo it will always be null).

"registration": {
  "activity_id": "<Activity ID (or empty string)>",
  "created_company_id": "<ID of the company created during registration (or empty string)>",
  "created_contact_id": "<ID of the contact created during registration (or empty string)>",
  "created_deal_id": "<ID of the deal created during registration (or empty string)>",
  "created_lead_id": "<ID of the lead created during registration (or empty string)>",
  "entity_id": "<ID of the entity used>",
  "entity_type": "<Type of used entity by string (in Bitrix24 - company/contact/lead)>",
  "id": "<Call ID in Bitrix24>",
  "responsible_id": "<ID of the user responsible for the call>"
}

Call result (result)

The result of the call in the form of SIP status (integer).

PreviousAudio file name customizationNextChange the number / context for calling to asterisk

Last updated 1 month ago

Was this helpful?

Bitrix24 user fields are described in the .

Telephone numbers in the phones array are represented as an object similar in structure to the number in the channel: .

Detailed description in the article .
